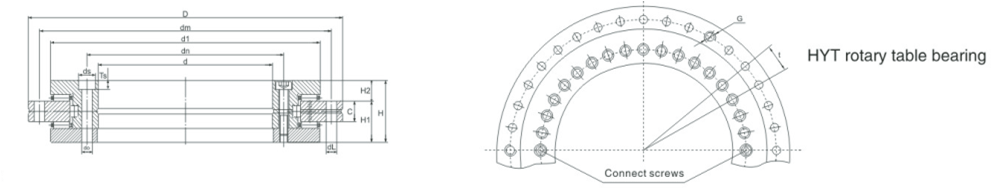

| Type | size | fixing hole | |||||||||||||
| d | D | H | H1 | H2 | C | d1 | dn | dm | inner ring | outer ring | |||||
| unit:mm | do | ds | Ts | QTY 4) | dL | QTY 4) | |||||||||
| mm | mm | ||||||||||||||
| YRT100 | 100 | 185 | 38 | 25 | 13 | 12 | 160 | 112 | 170 | 5.6 | 10 | 5.4 | 16 | 5.6 | 15 |
| Type | Screw connection QTY | Connect screws holes | Pitch1)t | Tightening torque of screw | Basic load rating | Limited speed5) | Friction Moment3) | weight | ||||
| Axial | Radial | |||||||||||
| Dynamic | Static | Dynamic | Static | |||||||||
| MA2) | Ca | Coa | Cr | Cor | Grease | |||||||
| G | QTY | QTYXt | N m | KN | r/min | Nm | ≈Kg | |||||
| YRT100 | 2 | M5 | 3 | 18*20° | 8.5 | 76.5 | 415 | 47.5 | 120 | 430 | 3 | 4.1 |

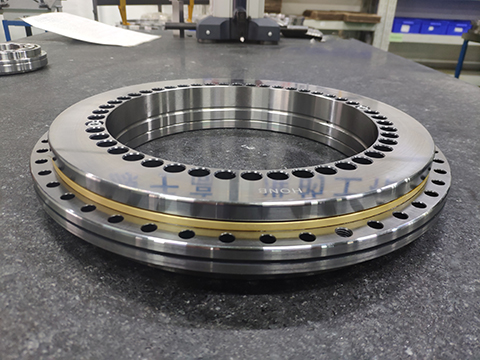

YRT precision slewing bearings YRT100 structure:Inner ring, Outer ring, the second inner ring, rolling elements, cages.
YRT precision slewing bearings YRT100 precision: P4(runout≤3μm); P2(runout≤1.5um)
YRT precision slewing bearings YRT100 torque: Normally YRT100 precision slewing bearings are preloaded before leaving the factory, it is necessary for customer to tell us the requirement torque, then we will adjust it to the right torque before leaving factory.(HONBbearing05)
