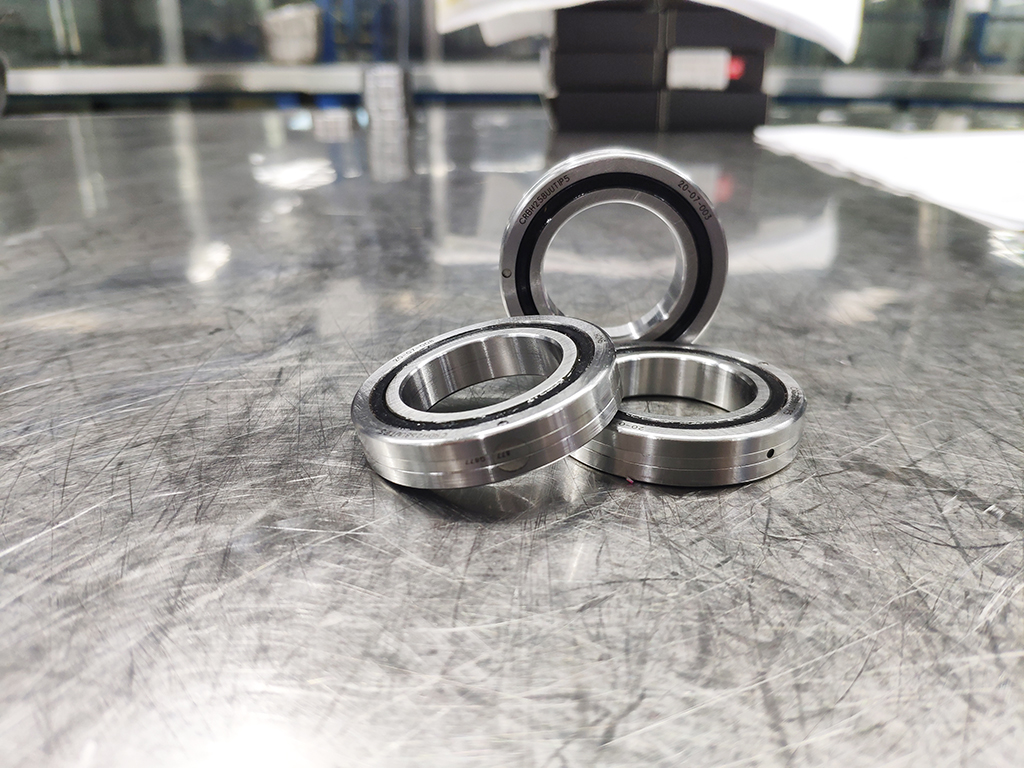

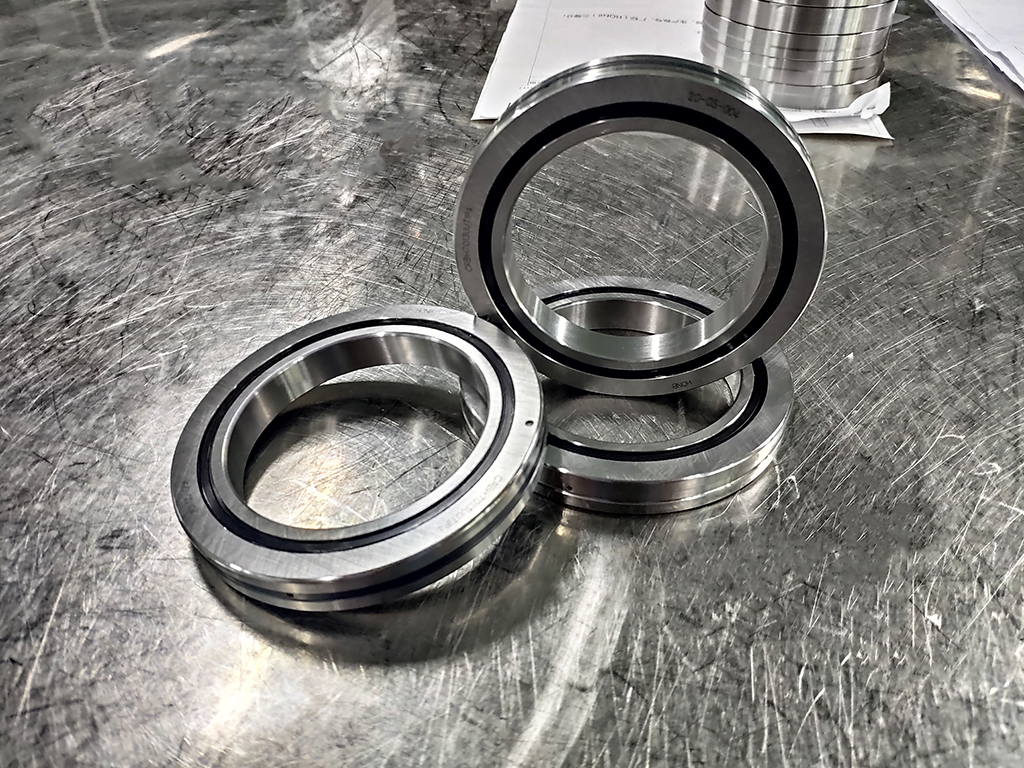

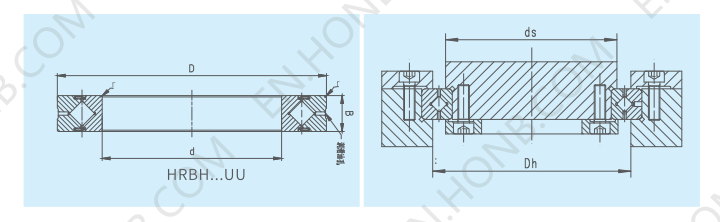

CRBH Cross roller bearings is integrated inner/outer ring type). CRBH bearing has no mounting holes, so it requires flange and supporting pedestal when installation. In addition,, because the outer ring and inner ring are integral structure, installation has no impact on performance.
Model | Main dimension | Basic Load Rating(Radial) | Basic Load Rating(Radial) | Weight |
d | D | H | Cr(KN) | Cor(KN) | ≈Kg |
CRBH208 | 20 | 36 | 8 | 2.9 | 2.4 | 0.04 |
CRBH258 | 25 | 41 | 8 | 3.1 | 2.8 | 0.05 |
CRBH3010 | 30 | 55 | 10 | 7.6 | 8.4 | 0.12 |
CRBH3510 | 35 | 60 | 10 | 7.9 | 9.1 | 0.13 |
CRBH4010 | 40 | 65 | 10 | 8.6 | 10.6 | 0.15 |
CRBH4510 | 45 | 70 | 10 | 8.9 | 11.3 | 0.16 |
CRBH5013 | 50 | 80 | 13 | 17.3 | 20.9 | 0.29 |
CRBH6013 | 60 | 90 | 13 | 18.8 | 24.3 | 0.33 |
CRBH7013 | 70 | 100 | 13 | 20.1 | 27.7 | 0.38 |
CRBH8016 | 80 | 120 | 16 | 32.1 | 43.4 | 0.74 |
CRBH9016 | 90 | 130 | 16 | 33.1 | 46.8 | 0.81 |
CRBH10016 | 100 | 140 | 16 | 31.7 | 48.6 | 0.83 |
CRBH10020 | 100 | 150 | 20 | 50.9 | 72.2 | 1.45 |
CRBH11012 | 110 | 135 | 12 | 12.5 | 24.1 | 0.4 |
CRBH11015 | 110 | 145 | 15 | 23.7 | 41.5 | 0.75 |
CRBH11020 | 110 | 160 | 20 | 52.4 | 77.4 | 1.56 |
CRBH12016 | 120 | 150 | 16 | 24.2 | 43.2 | 0.72 |
CRBH12025 | 120 | 180 | 25 | 73.4 | 108 | 2.62 |
CRBH13015 | 130 | 160 | 15 | 25 | 46.7 | 0.72 |
CRBH13025 | 130 | 190 | 25 | 75.9 | 115 | 2.82 |
CRBH14016 | 140 | 175 | 16 | 25.9 | 50.1 | 1 |
CRBH14025 | 140 | 200 | 25 | 81.9 | 130 | 2.96 |
CRBH15013 | 150 | 180 | 13 | 27 | 53.5 | 0.68 |
CRBH15025 | 150 | 210 | 25 | 84.3 | 138 | 3.16 |
CRBH15030 | 150 | 230 | 30 | 100 | 156 | 5.3 |
CRBH16025 | 160 | 220 | 25 | 81.7 | 135 | 3.14 |
CRBH17020 | 170 | 220 | 20 | 29 | 62.1 | 2.21 |
CRBH18025 | 180 | 240 | 25 | 84 | 143 | 3.44 |
CRBH19025 | 190 | 240 | 25 | 41.7 | 82.9 | 2.99 |
CRBH20025 | 200 | 260 | 25 | 92.3 | 169 | 4 |
CRBH20030 | 200 | 280 | 30 | 114 | 200 | 6.7 |
CRBH20035 | 200 | 295 | 35 | 151 | 252 | 9.6 |
CRBH25025 | 250 | 310 | 25 | 102 | 207 | 4.97 |
CRBH22025 | 220 | 280 | 25 | 92.3 | 171 | 4.1 |
CRBH24025 | 240 | 300 | 25 | 68.3 | 145 | 4.5 |
CRBH25030 | 250 | 330 | 30 | 126 | 244 | 8.1 |
CRBH25040 | 250 | 355 | 40 | 195 | 348 | 14.8 |
CRBH30025 | 300 | 360 | 25 | 75.5 | 178 | 5.9 |
CRBH30035 | 300 | 395 | 35 | 183 | 367 | 13.4 |
CRBH30040 | 300 | 405 | 40 | 212 | 409 | 17.2 |
CRBH35020 | 350 | 400 | 20 | 54.1 | 143 | 3.9 |
CRBH40035 | 400 | 480 | 35 | 156 | 370 | 14.5 |
CRBH40040 | 400 | 510 | 40 | 241 | 531 | 23.5 |
CRBH45025 | 450 | 500 | 25 | 61.7 | 182 | 6.6 |
CRBH50025 | 500 | 550 | 25 | 65.5 | 201 | 7.3 |
CRBH50040 | 500 | 600 | 40 | 239 | 607 | 26 |
CRBH50050 | 500 | 625 | 50 | 267 | 653 | 41.7 |
CRBH60040 | 600 | 700 | 40 | 264 | 721 | 29 |
CRBH70045 | 700 | 815 | 45 | 281 | 836 | 46 |
CRBH80070 | 800 | 950 | 70 | 468 | 1330 | 105 |
CRBH90070 | 900 | 1050 | 70 | 494 | 1490 | 120 |
CRBH1000110 | 1000 | 1250 | 110 | 1220 | 3220 | 360 |
CRBH1250110 | 1250 | 1500 | 110 | 1350 | 3970 | 440 |
