Model: HRAU9008 Cross roller bearings
Precision Rating: P5/P4/P2
Seals Type:
UU/U/No seals
Number of Row: Single row
Cross roller bearing HRAU9008 bearing is applied on the robots, automation, direct drive motors

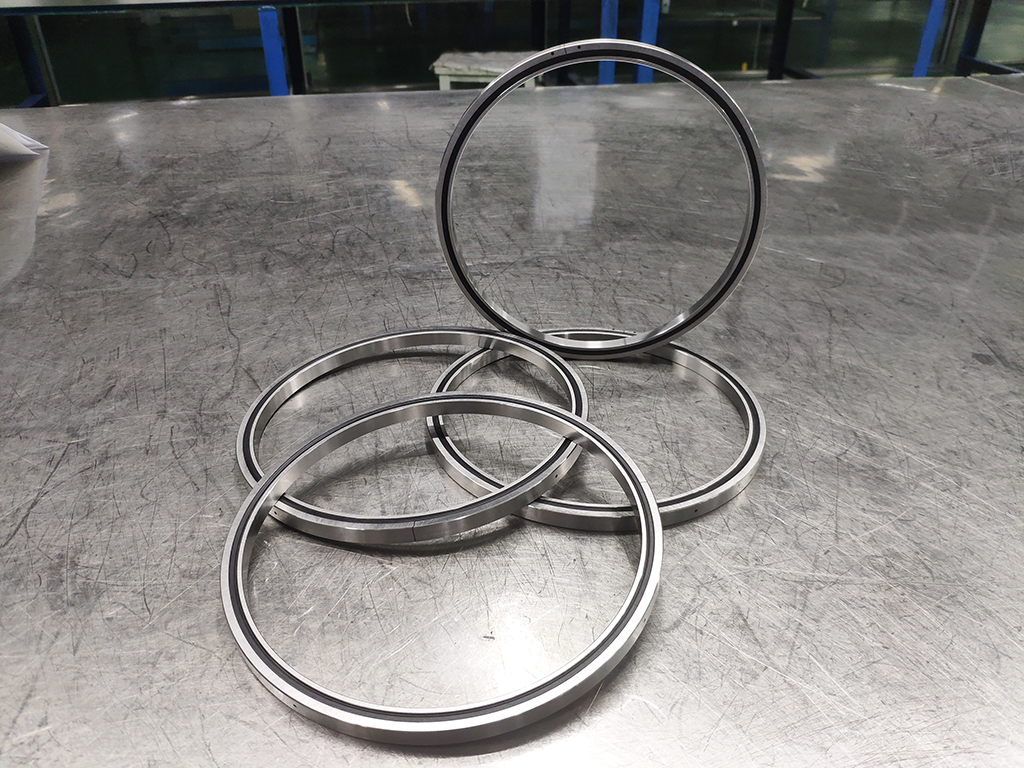

HRAU9008 is a kind of thin section cross roller bearings
Advantages: High precision, High load, high rigidity
Product Paramenters
Model | Main dimension | Basic Load Rating(Radial) | Basic Load Rating(Radial) | Weight |
d | D | H | Cr | Cor | ≈Kg |
HRAU1005 | 10 | 21 | 5 | 1.12 | 0.809 | 0.009 |
HRAU1505 | 15 | 26 | 5 | 1.32 | 1.1 | 0.012 |
HRAU2005 | 20 | 31 | 5 | 1.49 | 1.4 | 0.015 |
HRAU3005 | 30 | 41 | 5 | 1.89 | 2.14 | 0.021 |
HRAU4005 | 40 | 51 | 5 | 2.14 | 2.74 | 0.027 |
HRAU5005 | 50 | 61 | 5 | 2.43 | 3.49 | 0.032 |
HRAU6005 | 60 | 71 | 5 | 2.63 | 4.09 | 0.038 |
HRAU7005 | 70 | 81 | 5 | 2.81 | 4.68 | 0.044 |
HRAU8005 | 80 | 91 | 5 | 3.05 | 5.43 | 0.05 |
HRAU9005 | 90 | 101 | 5 | 3.19 | 6.03 | 0.056 |
HRAU10005 | 100 | 111 | 5 | 3.37 | 6.63 | 0.061 |
HRAU5008 | 50 | 66 | 8 | 5.1 | 7.19 | 0.08 |
HRAU6008 | 60 | 76 | 8 | 5.68 | 8.68 | 0.09 |
HRAU7008 | 70 | 86 | 8 | 5.98 | 9.8 | 0.1 |
HRAU8008 | 80 | 96 | 8 | 6.37 | 11.3 | 0.11 |
HRAU9008 | 90 | 106 | 8 | 6.76 | 12.4 | 0.12 |
HRAU10008 | 100 | 116 | 8 | 7.15 | 13.9 | 0.14 |
HRAU11008 | 110 | 126 | 8 | 7.45 | 15 | 0.15 |
HRAU12008 | 120 | 136 | 8 | 7.84 | 16.5 | 0.17 |
HRAU13008 | 130 | 146 | 8 | 7.94 | 17.6 | 0.18 |
HRAU14008 | 140 | 156 | 8 | 8.33 | 19.1 | 0.19 |
HRAU15008 | 150 | 166 | 8 | 8.82 | 20.6 | 0.2 |
HRAU16013 | 160 | 186 | 13 | 23.3 | 44.9 | 0.59 |
HRAU17013 | 170 | 196 | 13 | 23.5 | 46.5 | 0.64 |
HRAU18013 | 180 | 206 | 13 | 24.5 | 49.8 | 0.68 |
HRAU19013 | 190 | 216 | 13 | 24.9 | 51.5 | 0.69 |
HRAU20013 | 200 | 226 | 13 | 25.8 | 54.7 | 0.71 |
