Types of thrust ball bearings:

According to the force situation, it can be divided into one-way thrust ball bearing and two-way thrust ball bearing. One-way thrust ball bearings can bear one-way axial load. Two-way thrust ball bearings can withstand two-way axial loads, in which the shaft ring is matched with the shaft. The mounting surface of the seat ring is a spherical bearing, which has self-aligning performance and can reduce the influence of installation errors. Thrust ball bearings cannot bear radial loads, and the limit speed is low.

Thrust ball bearing features:

1. There are two types of one-way and two-way;

2. In order to allow installation errors, whether it is one-way or two-way, you can choose the spherical self-aligning spherical seat cushion type or the spherical seat ring type;

3. High-quality steel - use ultra-clean steel that can extend the life of the bearing by up to 80%;

4. Advanced grease technology - NSK's lubricant technology can extend the life of grease and improve the performance of bearings;

5. High-quality steel balls - quiet and smooth when rotating at high speed;

6. With the ferrule in the option, installation error can be tolerated.

Luoyang Hongyuan Bearing Technology Co., Ltd. is an enterprise specializing in the research, development and manufacture of precision turntable bearings, crossed roller bearings, and special bearings for robot reducers. The leading products are high-precision turntable bearings and thin-wall crossed roller bearings, with precision grades of P5, P4 and P2 grades, the size range is φ20mm-φ2000mm in outer diameter. After years of technological research and development and continuous improvement and breakthroughs in processing technology, the company's core products have improved the comprehensive performance of the bearings and broken the long-term domestic monopoly of similar foreign products. At present, it has occupied 80% of the domestic market for YRT rotary table bearings and precision cross bearings. In the roller bearing market, 50% of the products are exported to Europe, North America, India, South Korea, Taiwan and other countries and regions.

The product series are as follows:

1. Turntable bearing: YRT turntable bearing - high-speed YRTS turntable bearing - YRTM turntable bearing with measurement and control system - two-way thrust angular contact ball turntable bearing (ZKLDF turntable bearing).

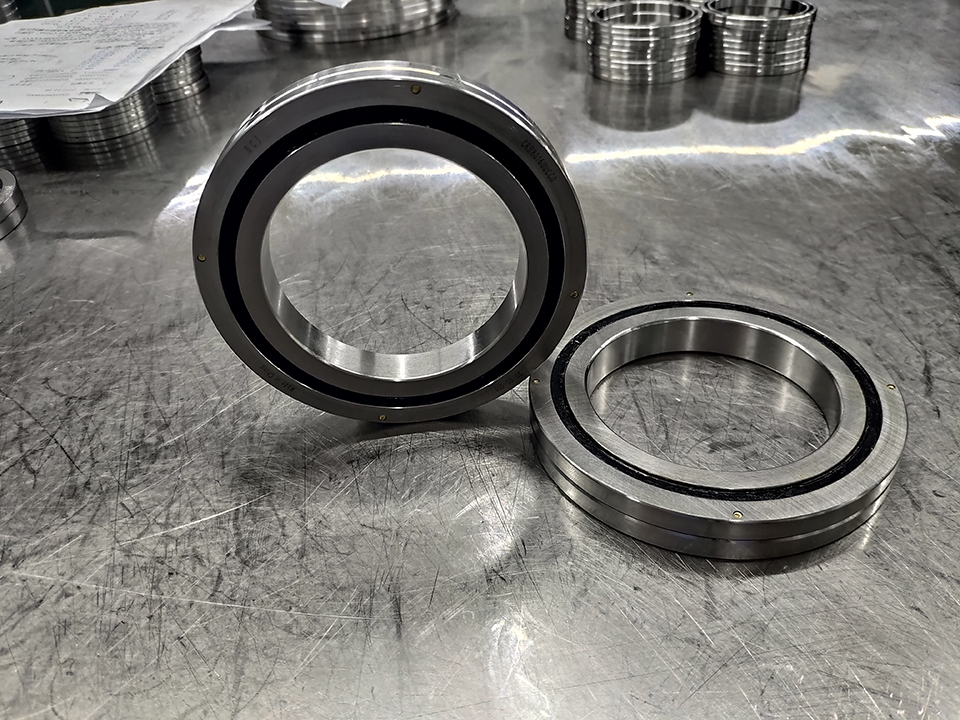

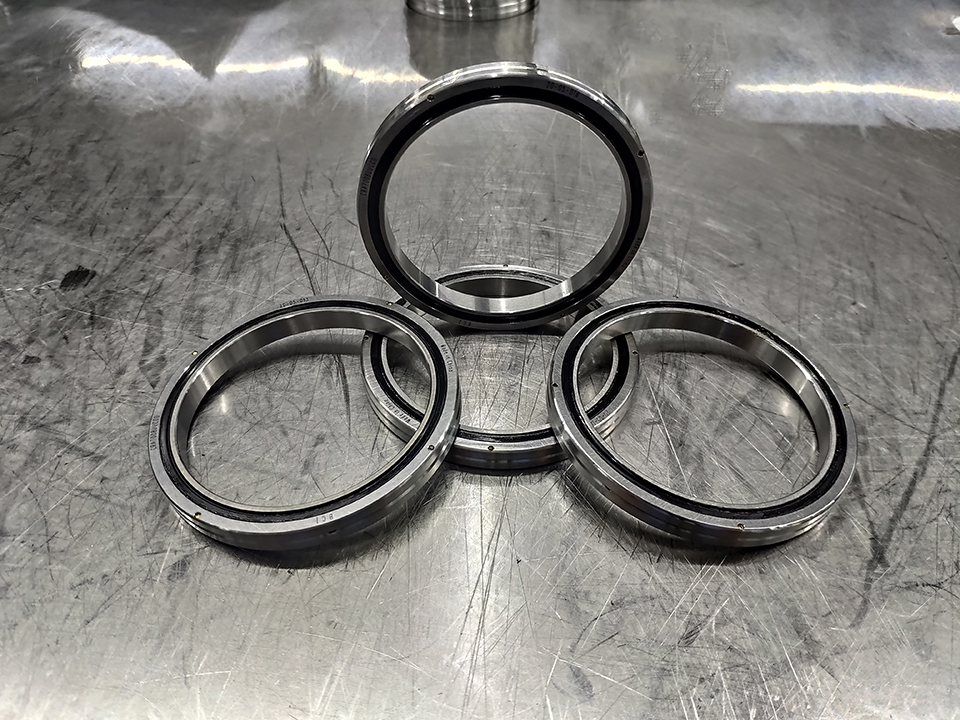

2. Crossed cylindrical roller bearings: RA crossed roller bearings, RA-C crossed roller bearings, RB crossed roller bearings, RE crossed roller bearings, RU crossed roller bearings, SX crossed roller bearings and other series.

3. Crossed tapered roller bearings: Crossed tapered roller bearings: XR crossed tapered roller bearings, JXR crossed tapered roller bearings and other series.

4. Special bearings for precision robot reducers: SHG series, CSG series, RV series, etc.
